IHMC’s Alex Opens Doors You Can Edit While It Walks
Florida’s Institute for Human and Machine Cognition and the University of West Florida posted a 20-page paper on 1 September arguing that the thing holding humanoids back on doors is not another policy, it is the behavior architecture. The stack is robot-local, the tree is editable at runtime, and the operator UI stays synchronized at 30 Hz.

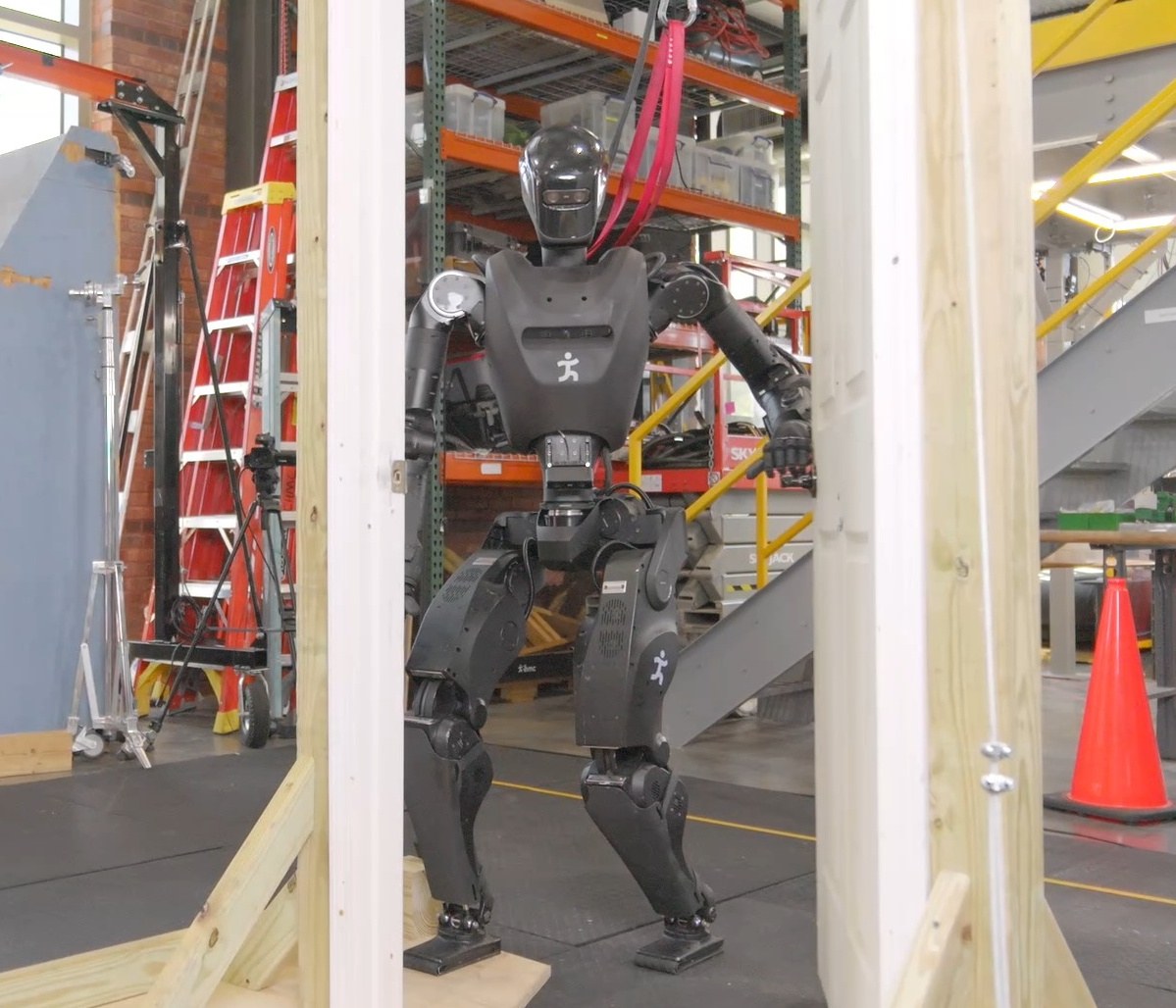

Lead author Duncan Calvert. Platforms: IHMC’s fully electric Alex (29 DoF, PSYONIC Ability Hands, two head stereo cameras) and Unitree H1-2. They have also run earlier versions on a DARPA Finals-era Atlas.
Headline demos from the abstract: a push-door traversal in 34 seconds, and six balls sorted by color in 45 seconds while a person disturbs the scene. A two-table variant in Figure 2 sorted nine balls in 2 minutes 8 seconds.
How it is put together
This is not a Behavior Tree in the textbook sense. The whole tree is one big sequence. Leaves run in depth-first order. A “next execution index” can be moved by the operator, a goto node, or a fallback. Concurrent actions are scheduled with “execute after” links so walking and an arm trajectory can overlap.

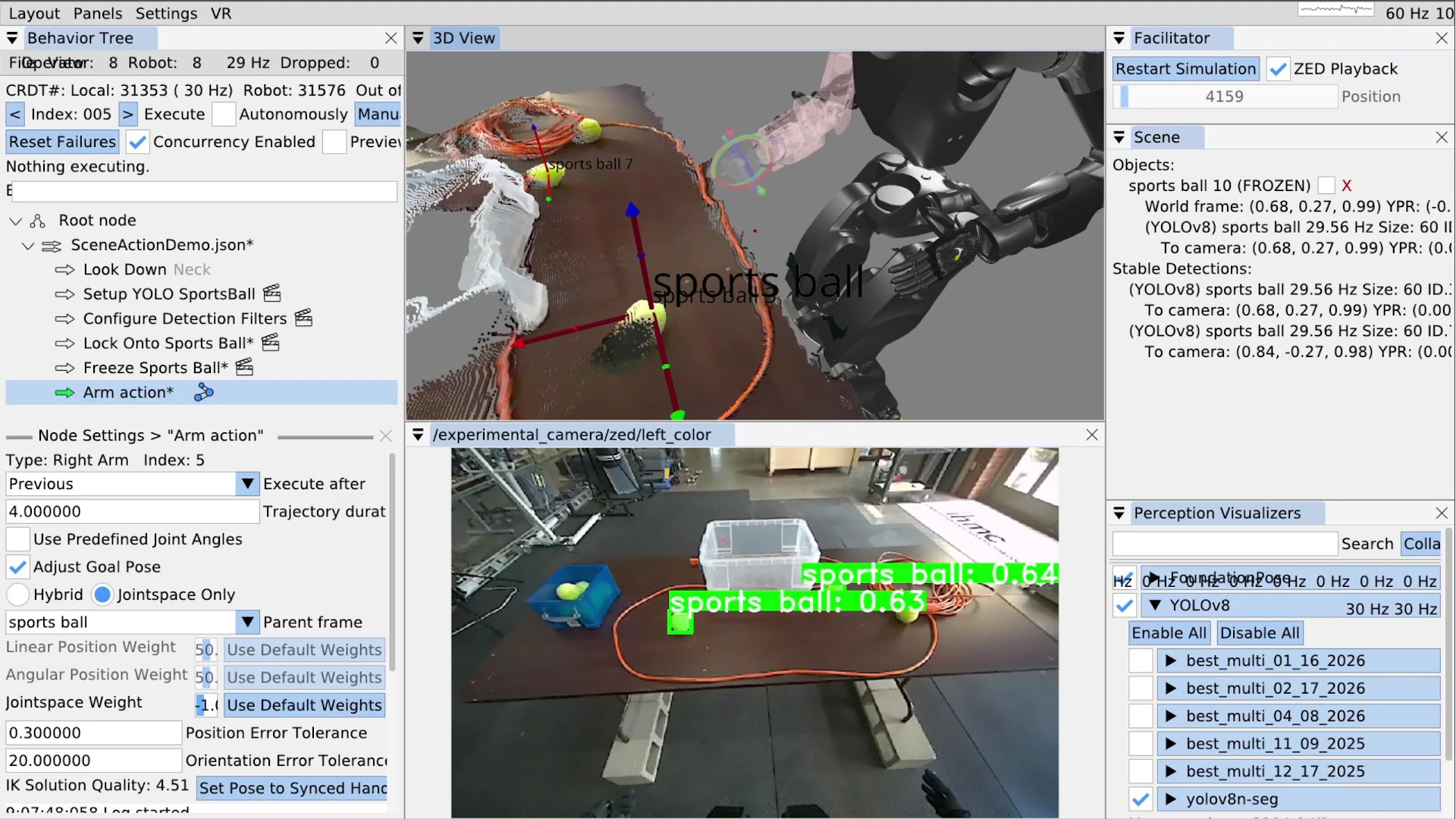

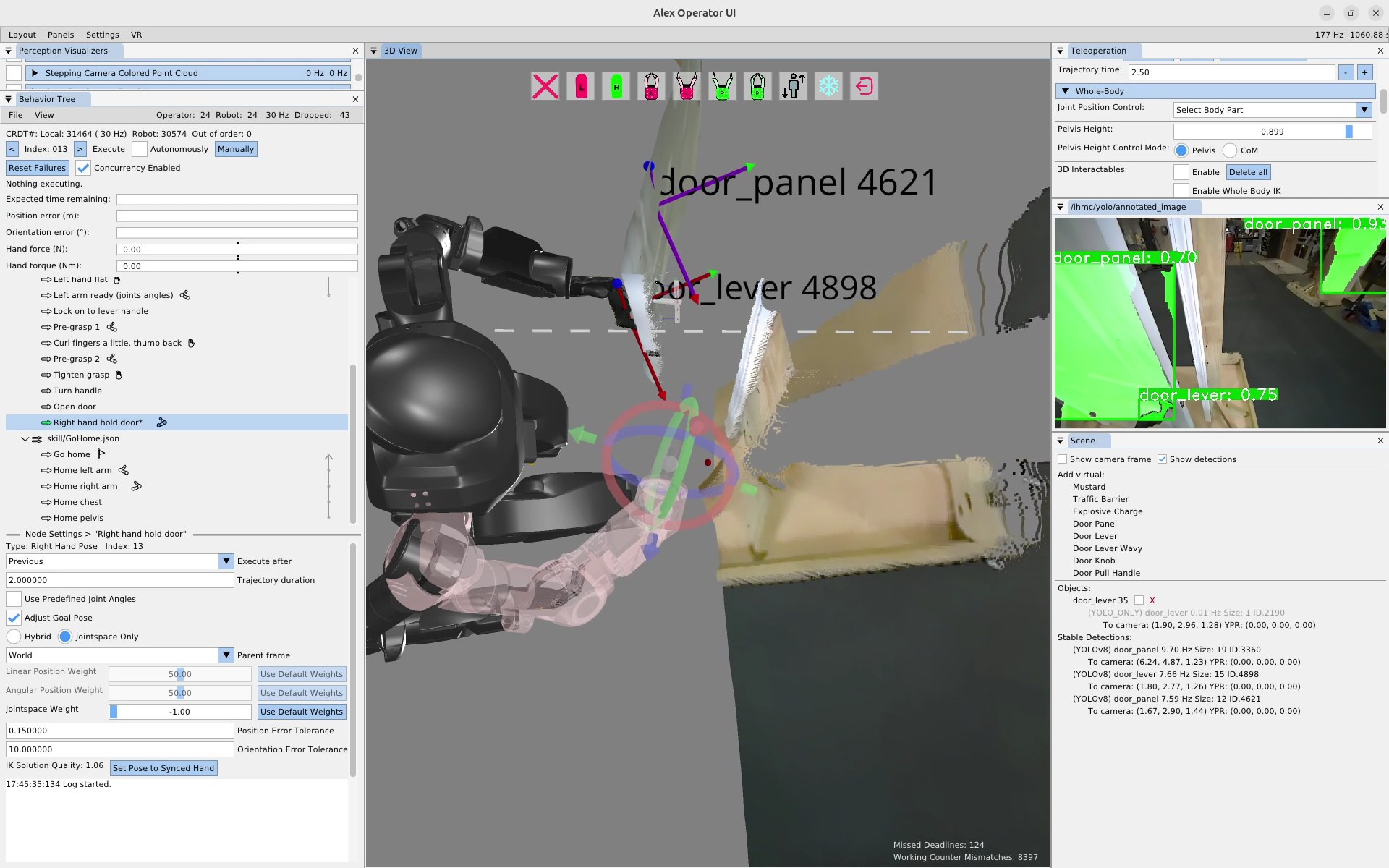

Perception stays on the robot: a ZED X Mini for stereo depth, YOLO for door panels and sports balls, plus CUDA “shape-contains” checks that count colored points inside a virtual sphere in under 10 ms. Door-frame objects estimate hinge side, push vs pull, and opening angle from the point cloud. Table approach uses two vertical capsules swept forward until they hit the table edge, then plants a squared-up frame on the floor.
The operator does not own the tick. If the UI dies, the robot keeps the tree. CRDT-style last-writer fields keep footstep goals and node edits from fighting over the wire.
Speed, resilience, authoring time
The authors’ claim is threefold. Timed door runs sit among the fastest published humanoid numbers and look competitive with recent learned door policies on overlapping tasks. They did not re-run those baselines themselves. Timed authoring sessions, they write, take a novel door behavior from an empty sequence to first fully autonomous success in under two hours of active editing, with similar times to retarget an existing tree onto a new door.
Funding notes in the paper: ONR Fast Behaviors and SquadBot grants, plus a breaching collaborative agreement.
A supplementary YouTube playlist is listed: PLJK5CTyotYqsfgfnXb-09YNFeBose6uEY.
A Human’s Take
I have a soft spot for a tree you can patch while the robot is in the doorway. Thirty-four seconds through a spring closer is a number I can compare. The interesting claim is the two-hour authoring clock, because that is how you cover the next door without a retraining week. If the playlist shows the 45-second sort with a human yanking balls mid-run, that is the demo. If it only shows the clean take, we are back to architecture slides.
