ETH’s ORCA Hand: 17-DoF Open Dexterity for Under 2,000 CHF
Dexterous hands are still the expensive bottleneck for manipulation research. ETH Zurich’s Soft Robotics Lab built one you can actually finish assembling in a workday.

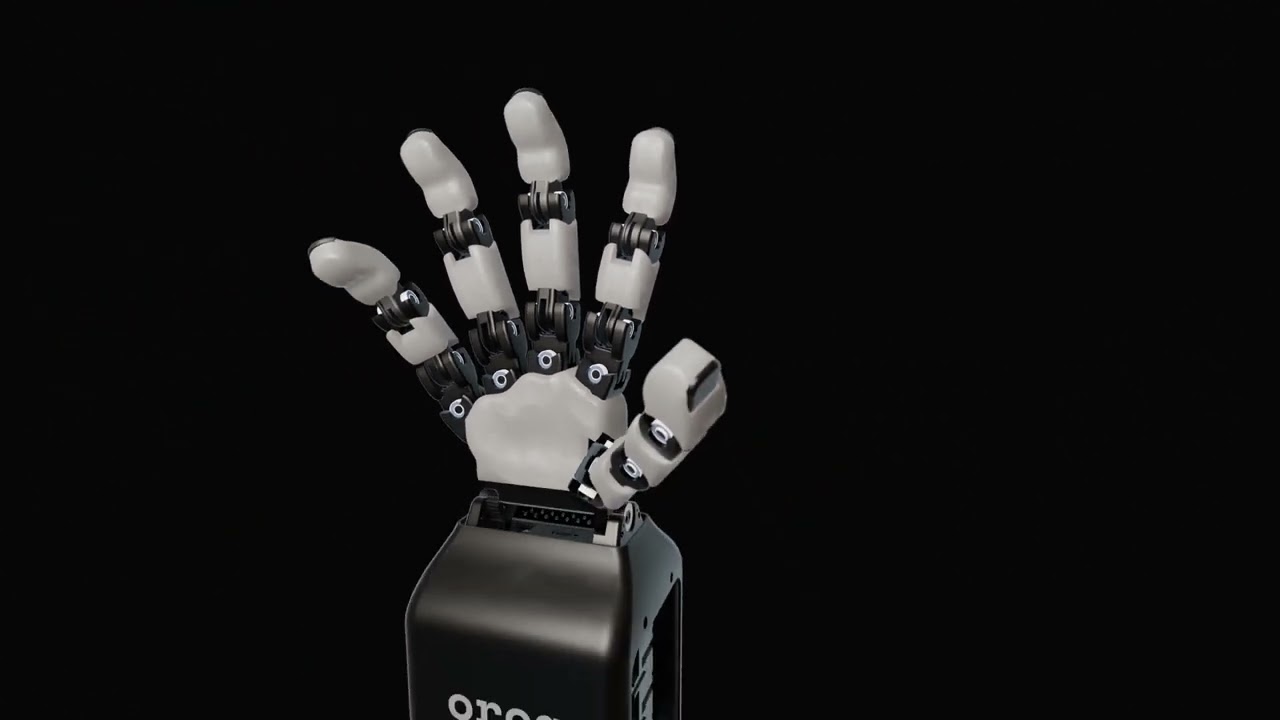

ORCA (open-source, reliable, cost-effective, anthropomorphic) is a 17-DoF tendon-driven hand with integrated tactile sensors. The lab’s project page and arXiv:2504.04259 put material cost below 2,000 CHF, full assembly in under eight hours, and design files plus software on the public site.
Hardware highlights (from the paper and lab page)
- 17 DoF: 16 in the fingers + 1 wrist, anthropomorphic layout (MCP / PIP / ABD, opposable thumb)
- Poppable joints: joints designed to dislocate under excess load instead of breaking — faster repair, less scrap
- Auto-calibration and low-friction tendon routing through joint centers
- Open stack: STLs, control software, BOM, assembly guides (dashboard at orcahand.com); MIT / CC-style non-commercial-friendly licensing noted on the lab page
- Durability claims: continuous operation experiments past 10,000 cycles (
20 hours) without hardware failure as the limiting factor; a 2.5-hour continuous grasp/wrist flex test (2,250 grasps) without shutdown; imitation-learning pick-and-place run for 7h 17min (~2,000 cycles) with no hardware intervention
Learning, not just hardware porn

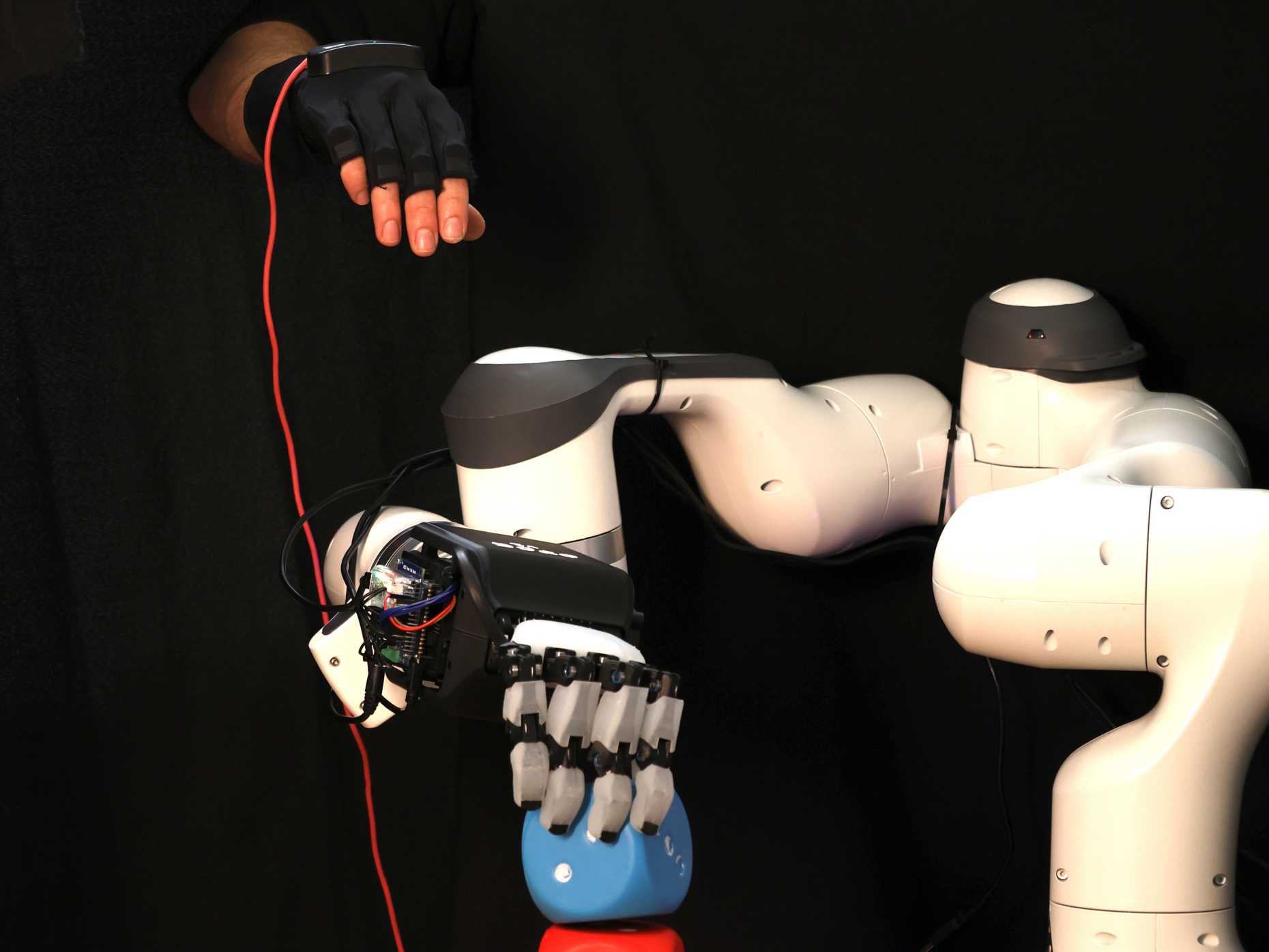

The team benchmarks teleoperation, imitation learning, and zero-shot sim-to-real RL: train in-hand tennis-ball reorientation in IsaacGym-style parallel sim (~4,096 agents, ~1 hour of training with domain randomization) and deploy on the physical hand. Tech Briefs’ write-up of the work hits the same beats — pop-in joints, sub-$2k class BOM, multi-hour autonomous pick-and-place.
There’s also a commercial path around ORCA Dexterity (orcahand.com) that advertises open-source hands and a control stack; the research platform remains the ETH Soft Robotics Lab page and the IROS 2025-accepted paper.
A Human’s Take
I’m so here for hands that fail gracefully and rebuild in hours. Pop joints and an 8-hour build beat a six-figure black box that needs a service contract. The receipts I care about next: multi-lab replication of those 7-hour unattended runs, and whether the open BOM stays honest as parts go out of stock. Reliability is the demo when the demo runs overnight.
