ROBOTIS AI Sapiens K1: Open-Source Humanoid for Physical AI
ROBOTIS, the company behind Dynamixel servos, is pushing AI Sapiens as an open humanoid platform for physical AI — hardware, learning workflows, and (as releases land) CAD and firmware. The documented research body is AI Sapiens K1.
Hardware that fits a lab door
From the official ROBOTIS docs:

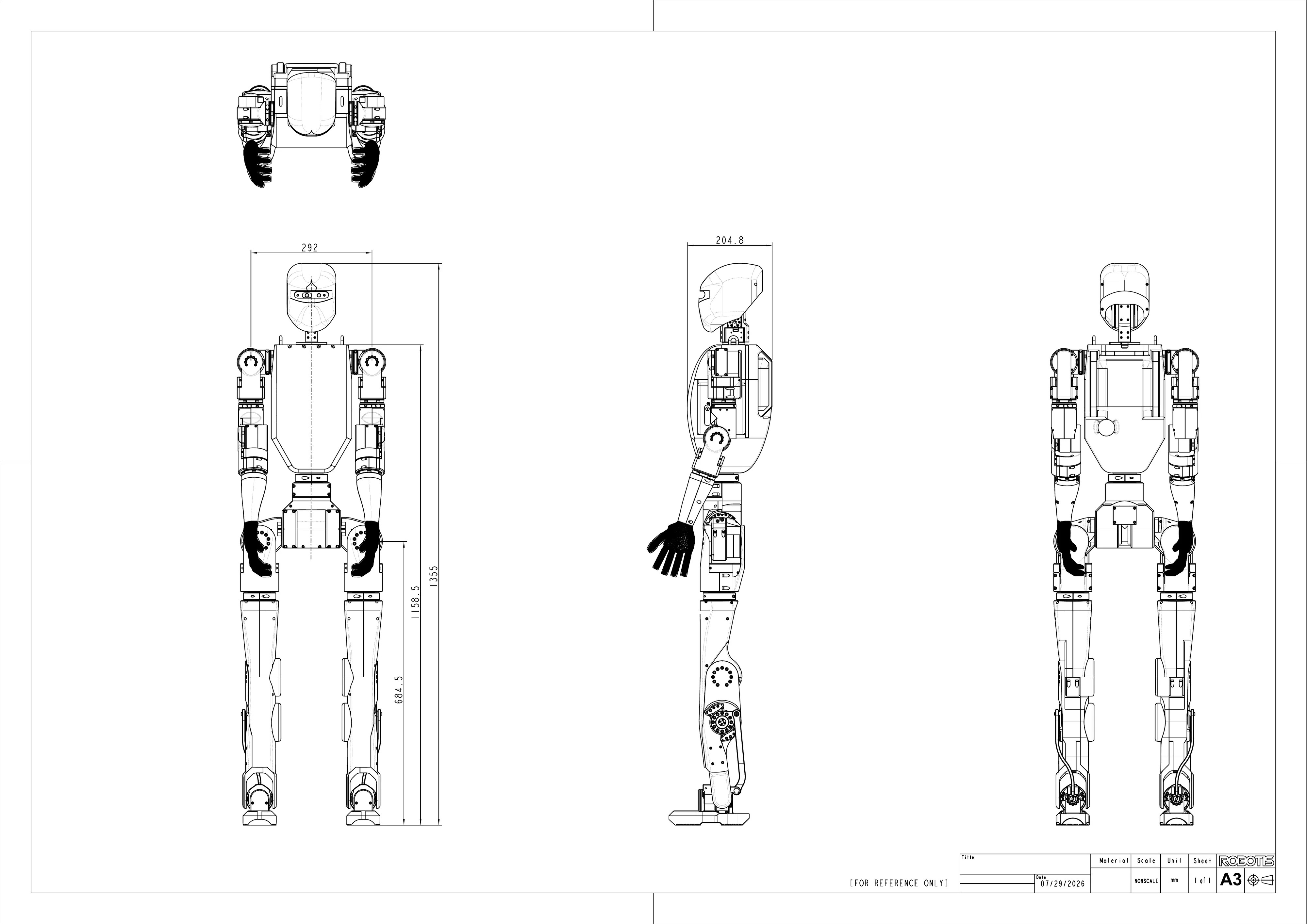

| Spec | Value |
|---|---|
| Height | 1355 mm |
| Weight | 35 kg |
| DOF | 23 total (5 per arm, 6 per leg, 1 waist yaw) |
| Actuators | DYNAMIXEL-Q QDD: 12× QC060-200 + 11× QC080-240 |
| QC060 max torque / speed | 30.0 Nm / 200 rpm (48 V, 20:1, 435 g) |
| QC080 max torque / speed | 72.6 Nm / 110 rpm (48 V, 20:1, 845 g) |
QDD here means low gear reduction, low-inertia PMSM, integrated electronics, and high-speed communication — the same design language ROBOTIS has used to sell torque-controllable arms for years, now in a full biped package.
Learning stack: RL legs, imitation upper body

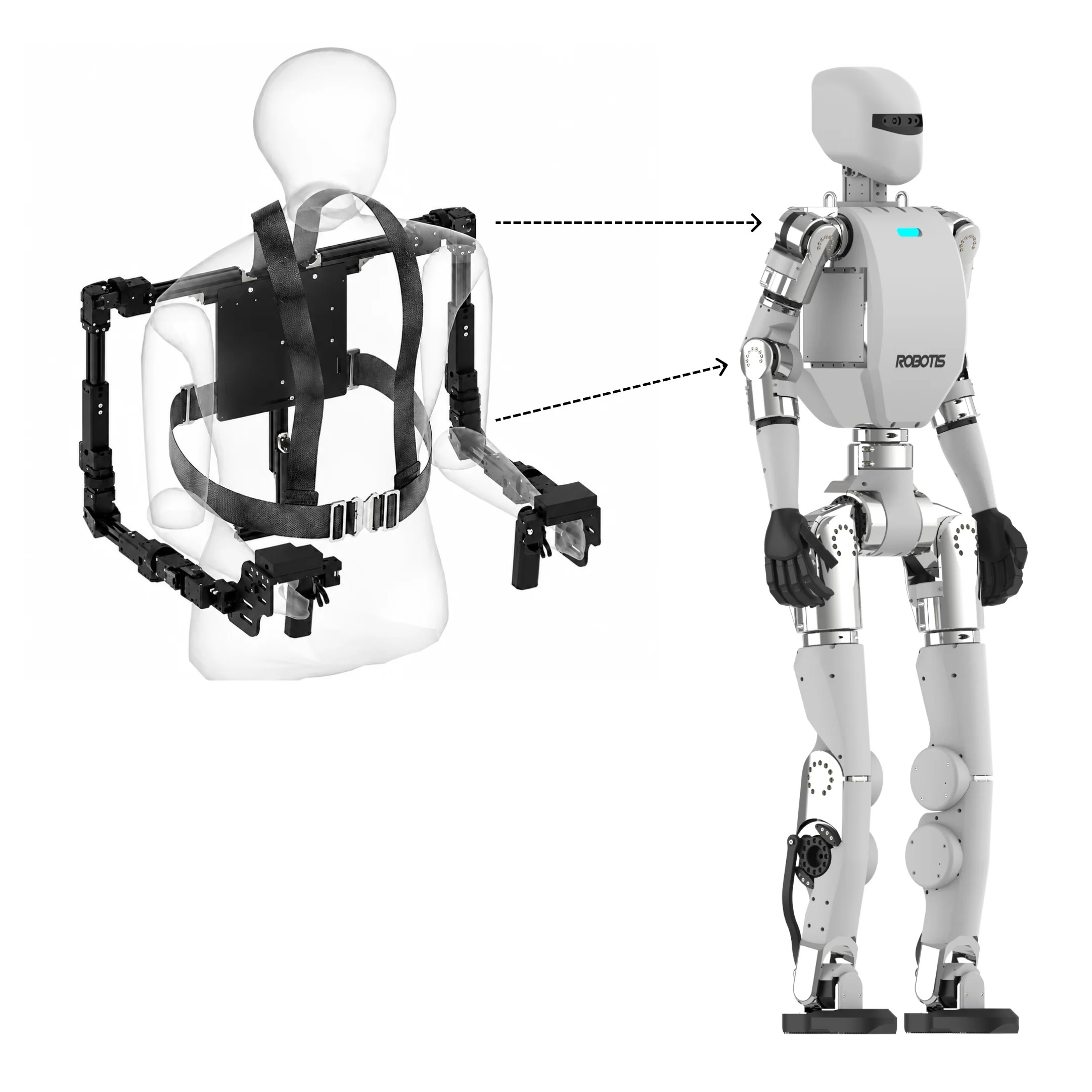

Docs describe reinforcement learning for locomotion in NVIDIA Isaac Sim, then transfer to the physical robot, plus an imitation learning path that records leader-follower demos and trains policies for natural repeatable upper-body behaviors.
On the Open Robotics Discourse (May 31, 2026), ROBOTIS engineer Pyo showed text-to-motion on the platform using NVIDIA Kimodo, with full-body motions executed under RL control. The post said the company was preparing to open 3D CAD, schematics, firmware, control code, simulation assets, and RL configs, with a target of a full resource drop by end of June 2026. Specs and open-source resources may still change as the product approaches broader launch — ROBOTIS flags that explicitly in the docs.
A Human’s Take
I care about whether the open-source calendar is real. Docs that list BoM and STEP files as “coming soon” are a promise, not a kit. If ROBOTIS actually drops CAD and RL configs that boot on a Dynamixel-Q biped, university labs get a serious alternative to Chinese G1 clones with opaque support. Until then, treat AI Sapiens as a well-documented platform in progress — and the 23-DoF / 35 kg sheet is already useful for anyone sizing lab humanoids.
