STEMbot Climbs Plant Stems to Look Where Drones Cannot
STEMbot is a miniature climbing robot from the University of Michigan ARM Lab that grips plant stems and drives under the canopy, where drones and ground rovers cannot see pests. The paper is on arXiv as 2607.07873 (8 July 2026) and is accepted to IROS 2026. IEEE Spectrum’s 14 August 2026 Video Friday roundup picked it up as “tiny” and “adorable,” which is fair, but the interesting bit is the grip and the map.
The project page says organic pest checks are expensive because many insects live on the underside of leaves or on stems. STEMbot is built for that gap.
How it holds on

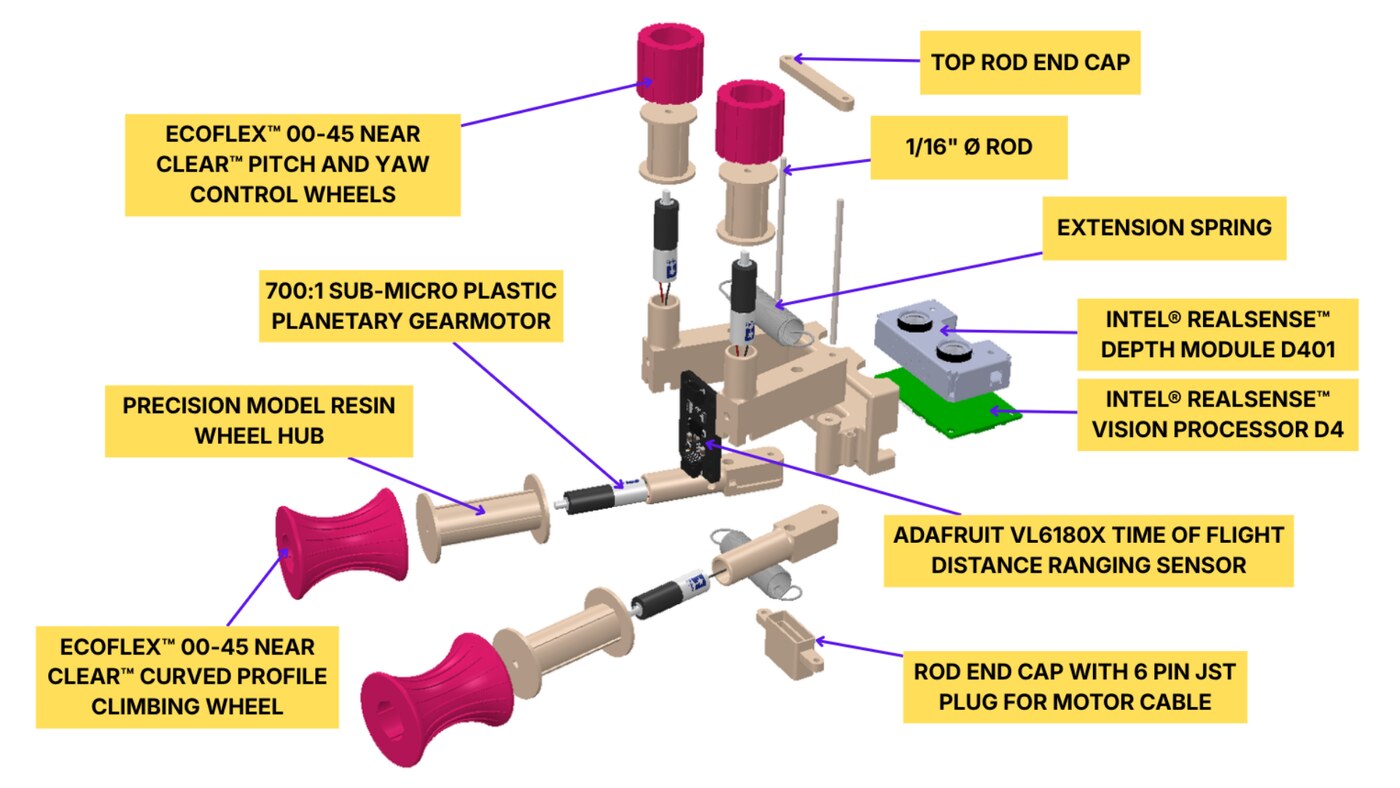

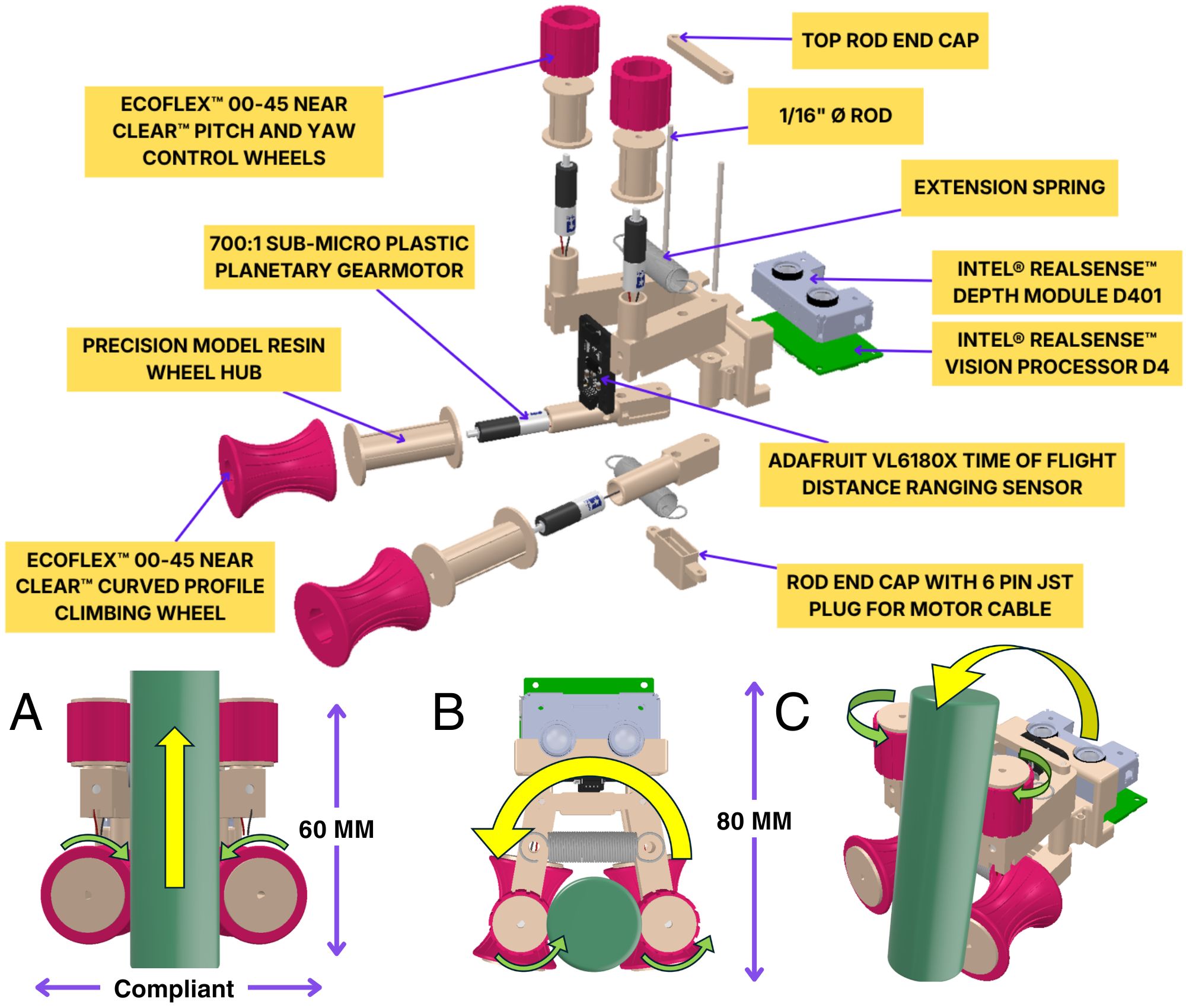

Two motor pairs drive concave, high-friction EcoFlex 00-45 wheels. A spring-loaded four-bar keeps contact as the stem diameter changes and leaves an open path so branches can pass through. Four 700:1 sub-micro planetary gearmotors provide three primitives: climb along the stem, yaw around it, and pitch. An Intel RealSense D405 (D401 depth module) plus a VL6180X time-of-flight sensor close a 90 Hz pitch loop.

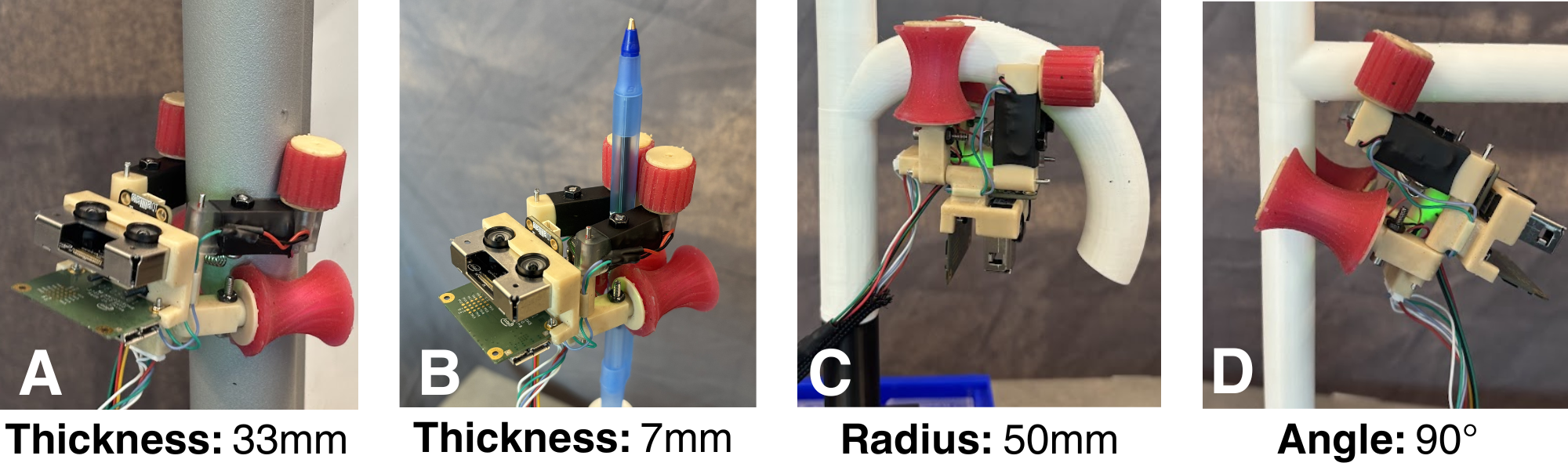

Hardware extremes reported on the project page:
- 7–33 mm demonstrated stem diameter
- 90° branch traversal (a 120° clip is shown as a fail)
- 50 mm tightest demonstrated curvature radius
- 4 plants in autonomous trials
Mapping while hanging upside down
Perception is geometry-first. PIN-SLAM registers depth without leaning on repetitive plant texture. SAM proposes masks, CLIP labels them, and high-confidence depths land in a semantic OcTree. A manifold-constrained A* planner walks that structure. Goals can be a pose on the stem or a visibility goal: stand where the camera can see a target without a leaf in the way.

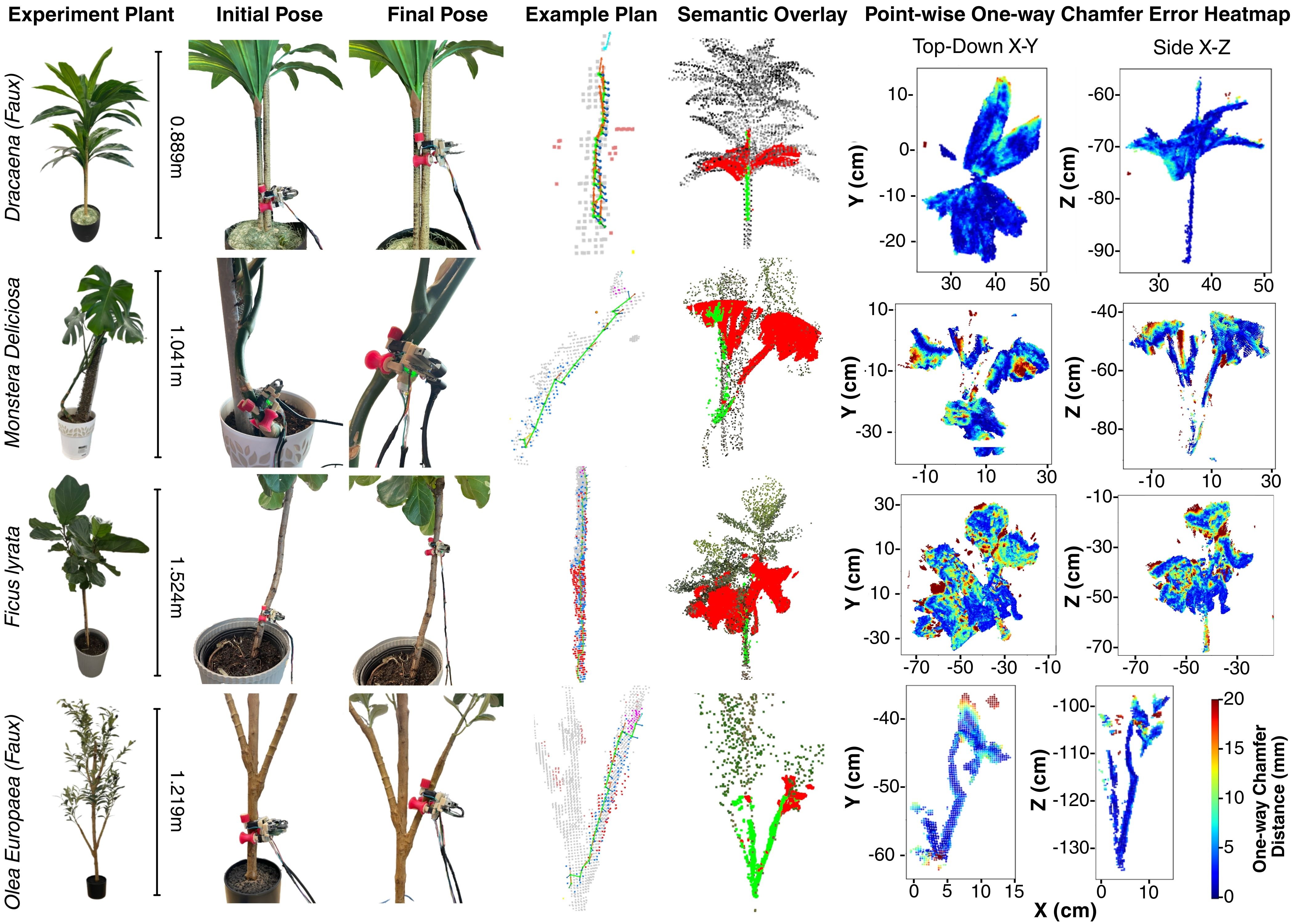

On artificial plants the mean one-way Chamfer distance versus an offline photogrammetry baseline is 3.85 mm. On live plants it rises to 13.36 mm. The authors blame non-rigid stems, growth between scans, and one semantic miss on a Monstera.
The page is blunt about limits: the planner assumes a static plant, does not pick inspection targets by information gain, and the robot is still tethered. Authors: Zachary Charlick, Nilay Roy Choudhury, Haoyu Ma, Xiaonan Huang, and Dmitry Berenson. Funding listed includes ONR, NSF, and a USDA National Robotics Initiative award.
A Human’s Take
A robot that can hang inverted on a 7 mm stem and still run SLAM is the kind of weird hardware I want more of. The live-plant Chamfer jump is the receipt that the greenhouse is harder than the PLA fixture. Untether it, let the plant sway, and then tell me it can find the aphids.
